Legacy: Syntax Of Recording Filter Condition

Please note: this is legacy documentation. Please check out https://docs.miarec.com/all/ for the most up-to-date documentation and user guides.

This article gi

Syntax

Condition of recording filter has following syntax:

<filter-name> condition = [ NOT ]  EXPRESSION  [ AND | OR ] [ ( ] EXPRESSION [ ) ] ...

Where, EXPRESSION is:

CALL-PARAMETER  [ = | > | >= | < | <= | <> | != | LIKE | RLIKE ]  [ VALUE | CALL-PARAMETER ]
  • CALL-PARAMETER is a call parameter, like caller-ip, caller-number, duration etc.
  • VALUE is a literal value, to which a call parameter is compared, for example, 1234, "Jonh Smith" etc.
  • =, >, >=, <, <=, <>, !=, LIKE and RLIKE are comparison operators.

Examples of recording filter condition:

filter1 condition = caller-ip = 192.168.0.1

filter2 condition = caller-number = 1234 OR caller-number = 5678

filter3 condition = caller-ip = 10.0.0.0/24 AND NOT callee-ip = 192.168.1.2

filter4 condition = (caller-number = 100 OR caller-number = 200) AND callee-number <> 300

filter5 condition = caller-number LIKE '011%'

filter6 condition = caller-number RLIKE '^011(22|34).*$'



Call parameters

The following table lists all supported call parameters.

Call parameter Description

caller-ip

callee-ip

IP-address of caller/callee

Formats:

  • x.x.x.x
  • x.x.x.x/y.y.y.y
  • x.x.x.x/z

where:

  • x.x.x.x is ip-address
  • y.y.y.y is a network mask in dot notation, like 255.255.255.0
  • z is a network mask in CIRD notation (prefix length), like 24 (which is equivalent to 255.255.255.0).

Examples:

caller-ip = 192.168.0.1
caller-ip > 10.0.1.5 AND caller-ip < 10.0.1.20
callee-ip = 10.0.2.0/255.255.255.0
callee-ip = 10.0.2.0/24

caller-port

callee-port

IP port

Examples:

caller-port = 5060
caller-port = 1720 OR callee-port = 1720

caller-mac

callee-mac

MAC-address.

Format: XX-XX-XX-XX-XX-XX

Examples:

caller-mac = 01-02-34-56-AF-F5

caller-number

callee-number

Phone number

Examples:

caller-number = 123456
caller-number = '+100' OR callee-number = '+100'
caller-number LIKE '011%'

caller-name

callee-name

Name of phone.

The value of this parameter depends on voip signaling protocol (SIP, H.323, Skinny etc).

Examples:

caller-name = "John Smith"
caller-name = "Marry" OR callee-name "Marry"

caller-id

callee-id

Id of phone.

The value of this parameter depends on voip signaling protocol (SIP, H.323, Skinny etc).

Examples:

caller-id = user1@sip.example.com
caller-id = Phone41 OR callee-id = Phone41

agent-id

agent-name

Id and Name of Agent.

These parameters are available only when Avaya TSAPI integration is enabled.

Examples:

agent-id = 50001
agent-name = 'John Smith'

transfer-from-number

transfer-from-name

transfer-from-id

Number, name and id of phone, from which the call was transferred.

The value of this parameter depends on voip signaling protocol (SIP, H.323, Skinny etc).

Examples:

transfer-from-number = 123456
transfer-from-name = 'John Smith'

transfer-to-number

transfer-to-name

transfer-to-id

Number, name and id of phone, to which the call was transferred.

The value of this parameter depends on voip signaling protocol (SIP, H.323, Skinny etc).

Examples:

transfer-to-number = 12456
transfer-to-name = 'John Smith'
setup-time

Date/time when call was started

Format: YYYY-mm-DD HH:MM:SS

Where:

  • YYYY is a year
  • mm is a month (1-12)
  • DD is a day (1-31)
  • HH is an hour (0-23)
  • MM is a minute (0-59)
  • SS is a second (0-59)

Example:

setup-time = 2007-06-10 13:45:51
voip-protocol

Voip protocol of the call. It is a numeric value, one of:

  • 0 – Unknown (not recognized protocol). Call is recorded from RTP packets
  • 1 - SIP
  • 2 - H.323
  • 4 - SCCP (Cisco Skinny)
  • 5 - MGCP
  • 6 - Avaya (H.323 protocol with proprietary extensions)
  • 7 - Nortel UNISTIM
  • 8 - TAPI
  • 9 - MGCP PRI Backhaul (it is used between Cisco CCM and Voice Gateway)
  • 10 - Alcatel (proprietary protocol used by Alcatel OmniPCX)

Example:

voip-protocol <> 0
sip-header-invite

Value of specific SIP header inside INVITE message. The name of header is specified after hash (#) symbol.

Examples:

sip-header-invite#User-Agent LIKE "Asterisk%"

Call parameters can be compared to literal values or to other call parameters, like:

caller-ip = 10.0.0.1
caller-port = callee-port



Literal values

Literal values are contacts, which are compared to call parameters.

Example:

caller-number = '123456789'

In above example a literal value '123456789' is compared to call parameter caller-number.

If a literal value contains space characters, then it should be enclosed into single (') or double (") quotes. For example:

caller-number = 123456789            <-- OK

caller-number = '123456789'          <-- OK

caller-name   = "John Smith"         <-- OK

caller-name   = John Smith           <-- Not valid

If a literal value itself contains a quote character, for example, d’Arnaud, then use following rules:

  • If a literal value contains either a single or double quote character, but not both at the same time, then enclose the value into different quotes, like:

    caller-name = "d'Arnaud"

    caller-name = 'Using double quotes charcter (")'

  • If a literal value contains both single and double quote characters, precede them with a special escape character ‘\’, like:

    caller-name = 'd\'Arnaud'

    caller-name = "Using double quotes charcter (\")"

  • If a literal value contains escape character '\', you must double it, like:

    caller-name = "Sample \\ name"



Comparison operators (=, >, < etc)

The following table lists all supported comparison operators.

Operator Description Examples

=

==

 Equal to
caller-ip = 192.168.0.1
callee-port == 5060

<>

!=

 Not equal to
caller-ip <> 10.0.0.1
callee-port != 5060

>

 Greater than
caller-ip > 10.0.0.10

<

 Less than
caller-port < 3000

>=

 Greaten than or equal to
caller-ip >= 192.168.0.1

<=

 Less than or equal to
caller-ip <= 192.168.0.50

LIKE

 Simple pattern matching
caller-ip LIKE '192.168.0.%'

NOT LIKE

 Negation of simple pattern matching
caller-number NOT LIKE '011%'

RLIKE

 Pattern matching using regular expressions (REGEX)
caller-number RLIKE '^011(22|34).*$'

NOT RLIKE

 Negation of Pattern matching using regular expressions (REGEX)
caller-ip NOT RLIKE '^192\.168\.(0|1)\..*$'



Logical opertors (AND, OR, NOT)

Complex expessions can be created with the help of logical operators (AND, OR, NOT etc).

Operator Description Examples

AND

&&

 Logical AND
caller-ip=192.168.0.1 AND caller-port=5060
caller-ip=10.0.0.1 && callee-ip=10.0.0.20

NOT

!

 Negates value
NOT (caller-port > 1024 AND caller-port < 6000)
! (caller-port < 1024 OR caller-port > 6000)

OR

||

 Logical OR
caller-ip=10.0.0.1 OR callee-ip=10.0.0.1
caller-ip=10.0.0.1 || callee-ip=10.0.0.1

Prentheses "(" and ")" are supported inside expressions, like:

caller-ip=192.168.0.1 AND ( callee-ip = 10.0.0.1/24 OR callee-ip = 80.25.23.10 )



Simple pattern matching (LIKE)

Pattern matching comparison supports following wildcard characters:

Character Description
%

Matches any number of characters, even zero characters

Examples:

  • caller-name LIKE 'David%'

    ... will match David, Davidson, but not Davi

  • caller-name LIKE 'D%d%'

    ... will match David, Davidson, Dady
_

Matches exactly one character

Examples:

  • caller-name LIKE 'D_vi_'

    ... will match David, but not Davidson

  • caller-name LIKE 'D__vi_'

    ... will match Daavid, but not David

To test for literal instances of a wildcard character, precede it by the escape character '\'.

String Description

\%

Matches exactly one '%' character

  • caller-name LIKE 'David\%'

    ... will match David%

\_

Matches exactly one '_' character

  • caller-name LIKE 'David\_'

    ... will match David_

\\

Matches exactly one '\' character

  • caller-name LIKE 'David\\'

    ... will match David\



Regular expressions pattern matching (RLIKE)

A regular expression is a powerful way of specifying a pattern for a complex search.

Examples:

callee-number RLIKE '^011(22|34).*$'

... will match any call, which was made to phone number starting either with 01122 or 01134

caller-ip NOT RLIKE '^192\.168\.(0|1)\..*$'

... will match any call, which was originated from IP 192.168.0.* or 192.168.1.*

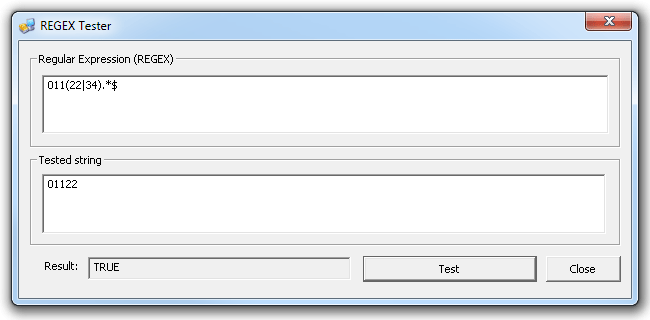

MiaRec uses Henry Spencer's implementation of regular expressions, which is aimed at conformance with POSIX 1003.2.



Metacharacters

A regular expression for the RLIKE operator may use any of the following metacharacters and constructs:

Metacharacter Description
.

Matches any single character. For example:

  • a.c

    ... will match  "abc", but not "ac" or "abbc"
[  ]

A bracket expression. Matches a single character that is contained within the brackets. For example:

  • [abc]

    ... will match "a", "b" or "c".

  • [hc]at

    ... will match "hat" and "cat".

A '-' character between two other characters forms a range that matches all characters from the first character to the second. For example:

  • [0-9]

    ... will match any decimal digit.

  • [a-z]

    ... will match any lowercase letter from "a" to "z".

These forms can be mixed:

  • [abcx-z]

    ... will match "a", "b", "c", "x", "y" or "z".

To include a literal '-' character, it must be written first or last, for example, [abc-], [-abc].

To include a literal ] character, it must immediately follow the opening bracket [, for example, []abc].
[^  ]

Matches a single character that is not contained within the brackets. For example:

  • [^abc]

    ... will match any character other than "a", "b", or "c".

  • [^a-z]

    ... will match any single character that is not a lowercase letter from "a" to "z".

As above, literal characters and ranges can be mixed, like [^abcx-z]
*

Matches the preceding element zero or more times. For example:

  • ab*c

    ... will match "ac", "abc", "abbbc" etc.

  • [0-9]*

    ... will match "" (empty string), "0", "1", "2", "14", "502", "98541654", and so on (any combination of digits).
(  )*

Matches zero of more instances of the characters sequence, specified inside parentheses. For example:

  • (ab)*

    ... will match "", "ab", "abab", "ababab", and so on.

  • (1234)*

    ... will match "", "1234", "12341234", "123412341234", and so on.
+

Matches the preceding element one or more times. For example:

  • ba+

    ... will match "ba", "baa", "baaa", and so on.

  • 0[0-9]+

    ... will match "00", "01", "02", "001", "01234", "09876543210", or any other combination of digits with preceding 0 and minimum length equal to two character.
?

Matches the preceding element zero or one time. For example:

  • ba?

    ... will match "b", or "ba", but not "baa"

  • 0[0-9]?

    ... will match "0", "01", "02", "03", and so on.
|

The choice (aka alternation or set union) operator matches either the expression before or the expression after the operator. For example:

  • abc|def

    ... will match "abc" or "def".

  • (0|011)[1-9]+

    ... will match phone number, which starts with either 0 or 011.
{n}

Matches the preceding element exactly n times. For example:

  • a{3}

    ... will match "aaa", but not "a", "aa" or "aaaa"

  • [0-9]{5}

    ... will match "01234", "56789" or any other combination of digits, which has lenght 5 characters.
{m, n}

Matches the preceding element at least m and not more than n times. For example:

  • a{3,5}

    ... will match "aaa", "aaaa", "aaaaa", but not "aa" or "aaaaaaaa".
{m, }

Matches the preceding element at least m times. For example:

  • a{2,}

    ... will match "aa", "aaa", "aaaa", and so on.
^

Matches the beginning of a string. For example:

  • ^[hc]at

    ... will match "hat" and "cat", but only at the beginning of the string
$

Matches the end of a string. For example:

  • [hc]at$

    ... will match "hat" and "cat", but only at the end of the string not "David Bowie"

  • ^[hc]at$

    ... will match "hat" and "cat", but only when the string contains no other characters
\

Backslash (\) character is used for escaping metacharacters. For example:

  • 1+2

    ... will match "12", "112", "11112", but not "1+2", because "plus" character has a special meaning (see above).

  • 1\+2

    ... will match exactly "1+2". In this example, "plus" character is escaped with backslash character (\+).



POSIX character classes

The POSIX standard defines some classes or categories as shown in the following table

POSIX character class ASCII equivalent Description
[:alnum:] [A-Za-z0-9] Alphanumeric characters
[:alpha:] [A-Za-z] Alphabetic characters
[:blank:] [ \t] Space and tab
[:cntrl:] [\x00-\x1F\x7F] Control characters
[:digit:] [0-9] Digits
[:graph:] [\x21-\x7E] Visible characters
[:lower:] [a-z] Lowercase letters
[:print:] [\x20-\x7E] Visible characters and spaces
[:punct:] [][!"#$%&'()*+,./:;<=>?@\^_`{|}~-] Punctuation characters
[:space:] [ \t\r\n\v\f] Whitespace characters
[:upper:] [A-Z] Uppercase letters
[:xdigit:] [A-Fa-f0-9] Hexadecimal digits

POSIX character classes can only be used within bracket expressions ([  ]). For example:

 [[:upper:]ab]

... will match the uppercase letters and lowercase "a" and "b".



REGEX Tester utility

Writing a correct REGEX expression may be a challenging task. We recommend to use a special program REGEX Tester for testing RLIKE expressions for any syntax errors.

Download it from our website and start on your computer. Type your regular expression and a tested string into a program and click the "Test" button. Inside the "Result" field you will see either TRUE or FALSE. TRUE means that the tested string matches the expression. FALSE means that the tested string doesn't match the expression. In the case of syntax error in a regular expression, you will see a corresponding error instead of TRUE/FALSE.

RegexTester
